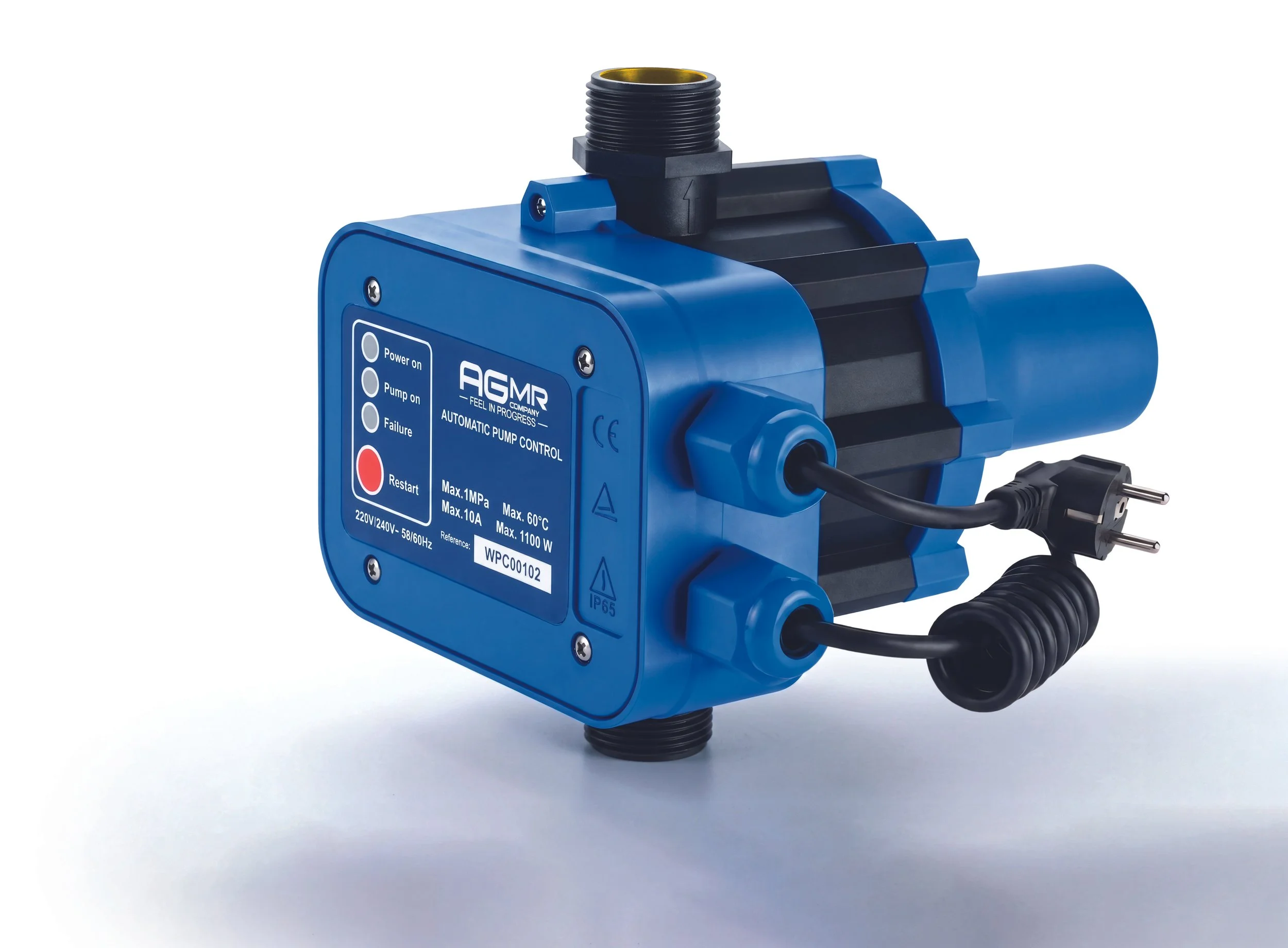

Water Pump Controller WPC00102
Overview The WPC00102 is a compact, reliable water pump controller designed for residential and light commercial pumping systems. It automates pump operation, protects the pump from common faults, and improves system efficiency with straightforward installation and configuration.
Key Features
Automatic On/Off Control: Starts and stops the pump based on pressure or level inputs (configurable).
Dry-Run Protection: Detects loss of water (via float switch or pressure sensor) and prevents pump damage by stopping operation and locking out until reset or water is restored.
Overload and Short-Circuit Protection: Integrated electrical protection to guard motor and wiring.
Adjustable Time Delay: On/off delay settings to prevent short-cycling and reduce stress on the pump.
Manual Override: Allows manual pump operation for maintenance or testing without changing settings.
Status Indicators: LED or display indicators for power, pump running, fault, and mode.
Fail-Safe Start: Configurable retry attempts after fault conditions.
Compact Enclosure: DIN-rail or wall-mount options for easy installation in control panels.
Voltage Compatibility: Models available for common supply voltages (specify model variant for your region).
Environmental Ratings: Designed for indoor use with IP-rated enclosure options for humid environments.
Typical Applications
Domestic water supply systems
Booster pump systems for small buildings
Irrigation and garden pumping
Sump and drainage pumping (with appropriate sensors)
Remote or unattended pumping installations
Inputs and Outputs
Inputs: Pressure switch input, float switch/level sensor input, manual start/stop, external alarm/reset.
Outputs: Pump relay contact (SPDT or DPST variants), alarm output, remote monitoring (optional analog or digital interface depending on model).
Installation Notes
Mount the controller on a stable surface away from direct moisture and excessive heat.
Ensure correct supply voltage and proper grounding before powering up.
Use appropriately sized wiring and overcurrent protection consistent with pump motor rating and local electrical codes.
Follow sensor wiring guidelines to avoid long runs causing signal degradation; if using pressure transducers, ensure proper calibration.
Configure delay and protection settings during initial commissioning to match the pump and system inertia.
Safety and Compliance
Complies with common electrical safety standards (check specific model certification for UL, CE, or regional marks).
Disconnect mains power before servicing.
Use qualified electricians for installation and major maintenance.
Ordering Information WPC00102 — Standard water pump controller with pressure/float input, manual override, dry-run protection, and LED indicators. Optional variants: specify supply voltage, enclosure rating (IP20/IP65), and additional communication modules (if required).
Technical Specifications (typical)
Supply Voltage: 120/240 VAC or 230 VAC variants (select when ordering)
Control Relay Rating: Up to motor starting current as specified per variant (consult datasheet)
Operating Temperature: -10°C to +50°C
Protection Degree: IP20 standard; IP65 option available
Mounting: DIN-rail or wall mount
Dimensions: Compact form factor — consult datasheet for exact dimensions
Support and Documentation Fell In Progress provides installation manuals, wiring diagrams, and troubleshooting guides. For commissioning assistance, contact technical support with pump type, motor rating, supply voltage, and sensor details.
Ordering and Customization Contact your Fell In Progress sales representative to order WPC00102 or request custom configurations (voltage variant, enhanced enclosure rating, communication options, or alternate input/output configurations). Provide application details to ensure correct configuration and protective settings.
